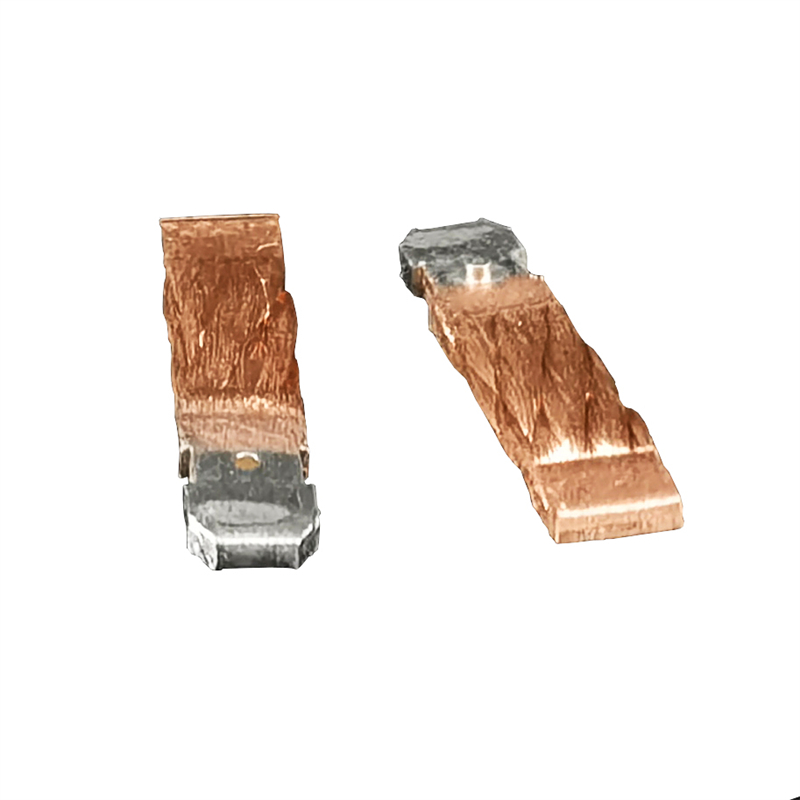

ReturnResistance Welded Strands

●Technical Requirements:

Material: TU1, Oxygen Free Copper,Copper Content≥99.95%

Sectional Area:0.15mm²-100mm²

Surface Coating: Bare Copper, Tin Plating, Nickel Plating, Silver Plating, etc.

Stranded Wire Single Wire Diameter:0.04mm-0.2mm, Normal Single Wire Diameter:0.05mm(AWG44), 0.07mm(AWG41), 0.10mm(AWG38)

Braided Wire Single Wire Diameter:0.04mm-0.2mm, Normal Single Wire Diameter:0.05mm(AWG44), 0.07mm(AWG41), 0.10mm(AWG38)

Braided Wire Carriers: 8,12,16,24,32,36,48,64,96


●Main Applications:

The wire can be used for electrical switch circuit connection, new energy vehicle circuit connection, photovoltaic inverter circuit connection, wind power circuit connection,carbon brush, etc as a flexible conductor.


●Product Advantages:

1.  Flexible copper stranded wire is twisted by high speed wire stranding machine. The unique patent technology is adopted in the process of twisting. The finished product is flexible, round and straight with tight structure, and has no loose strand phenomenon.

2.  Flexible copper braided wire is made of precision braided equipment. The braided wire adopts a variety of processes which can make it flexible, round, square, flat or hollow.

3. DONGJUE flexible copper wire adopts advanced annealing process, which has an outstanding oxidation resistance.

4. We can provide customized cutting production for customers to customize wires of different layer directions, structures, specifications and other non-standard products.

5. The sintering and cutting products are high dimensional precision and the core surface treatment technology improves the oxidation resistance of products.

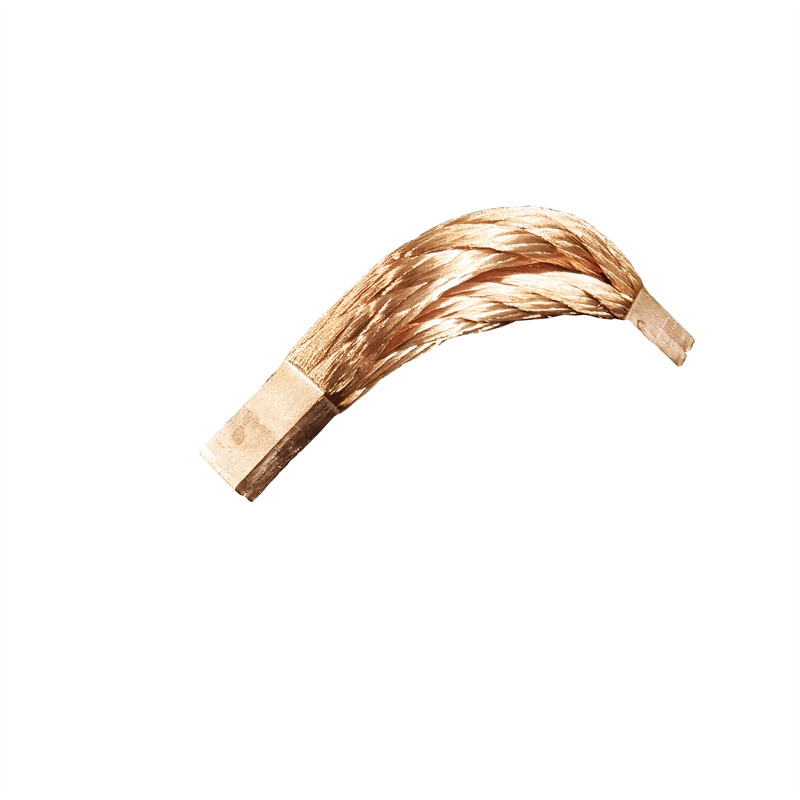

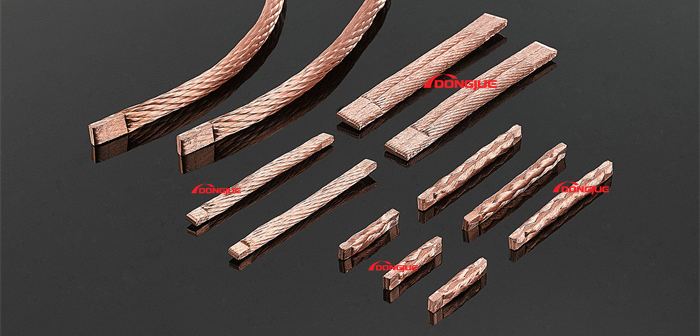

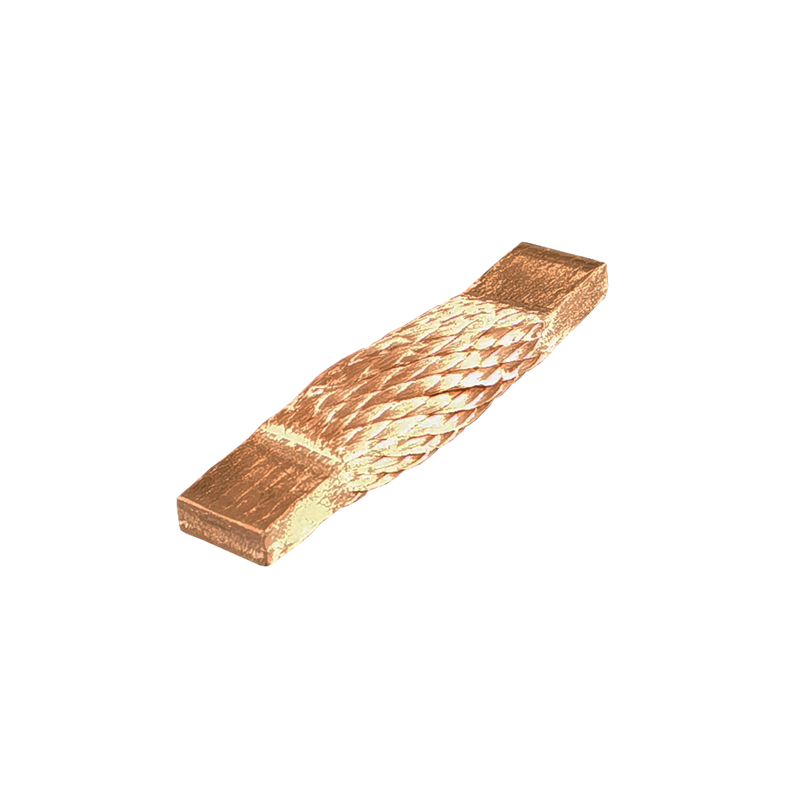

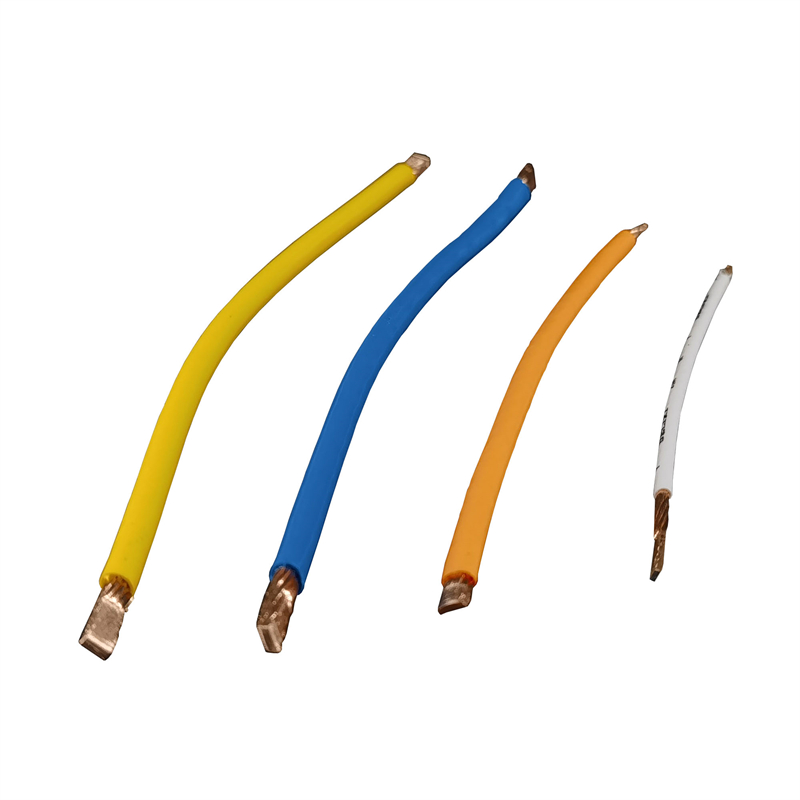

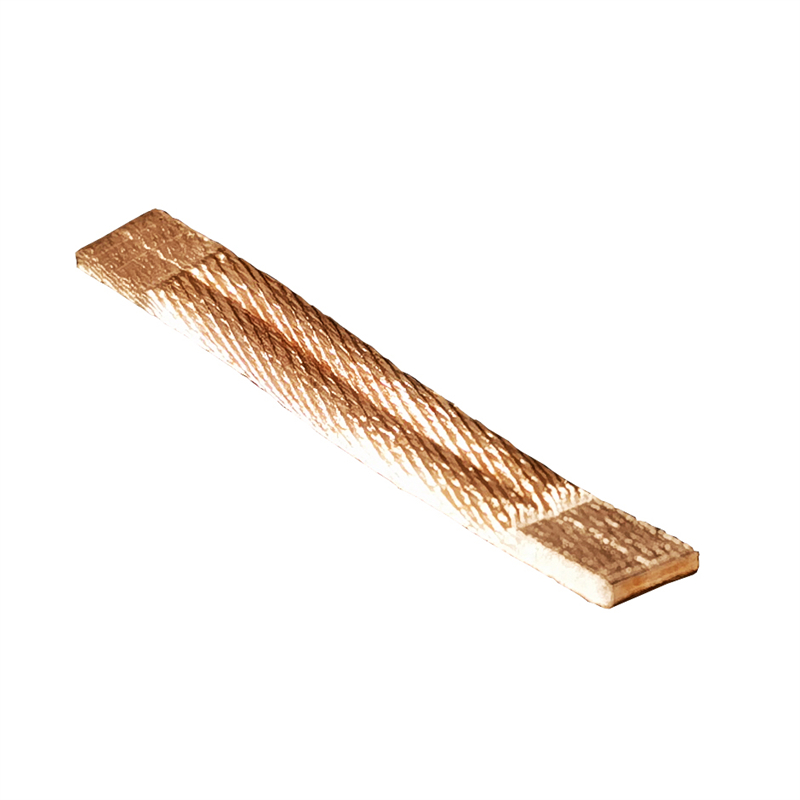

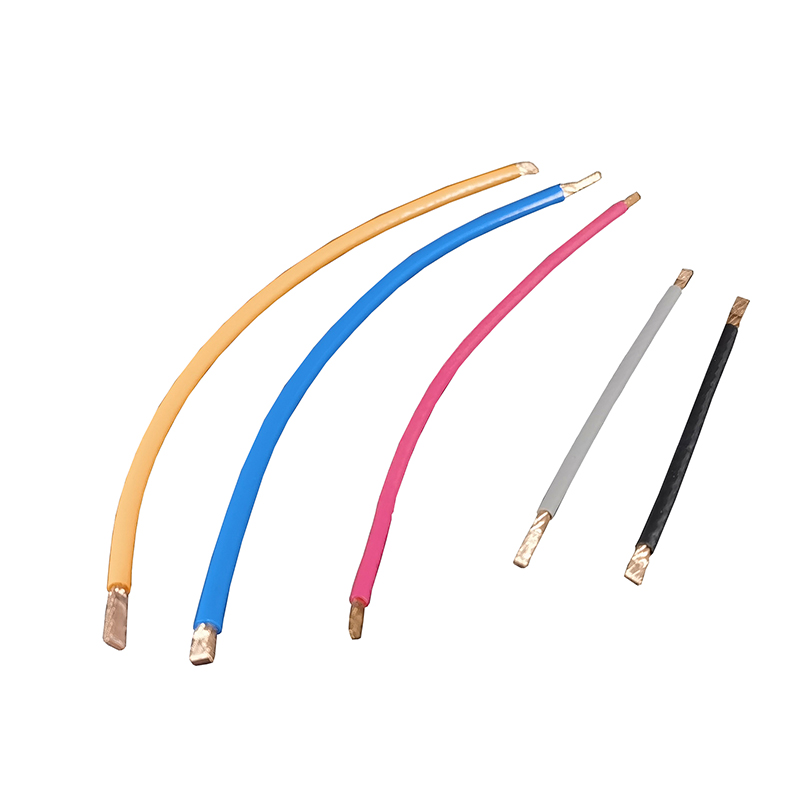

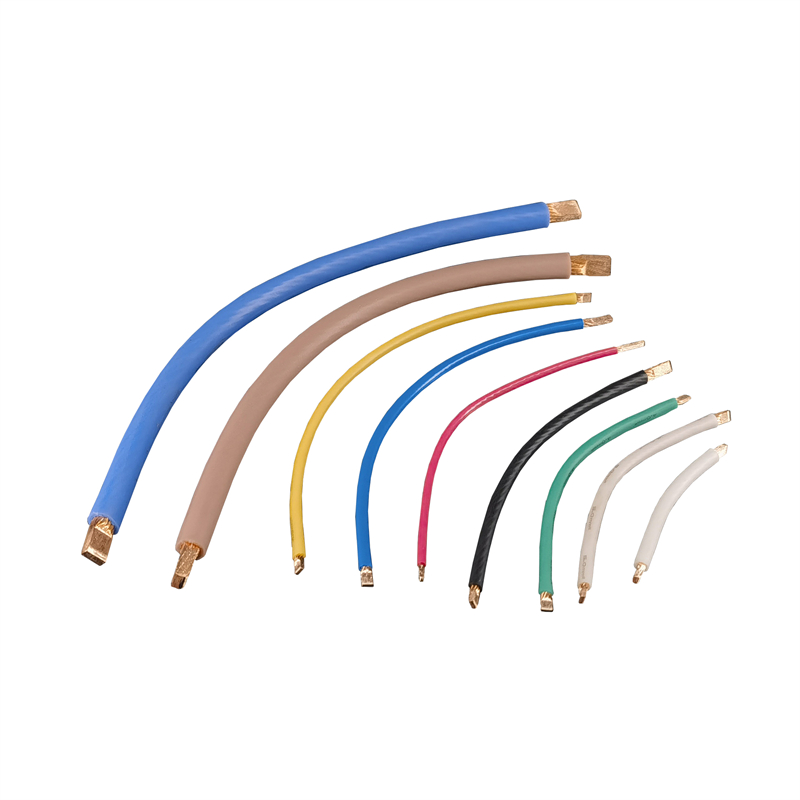

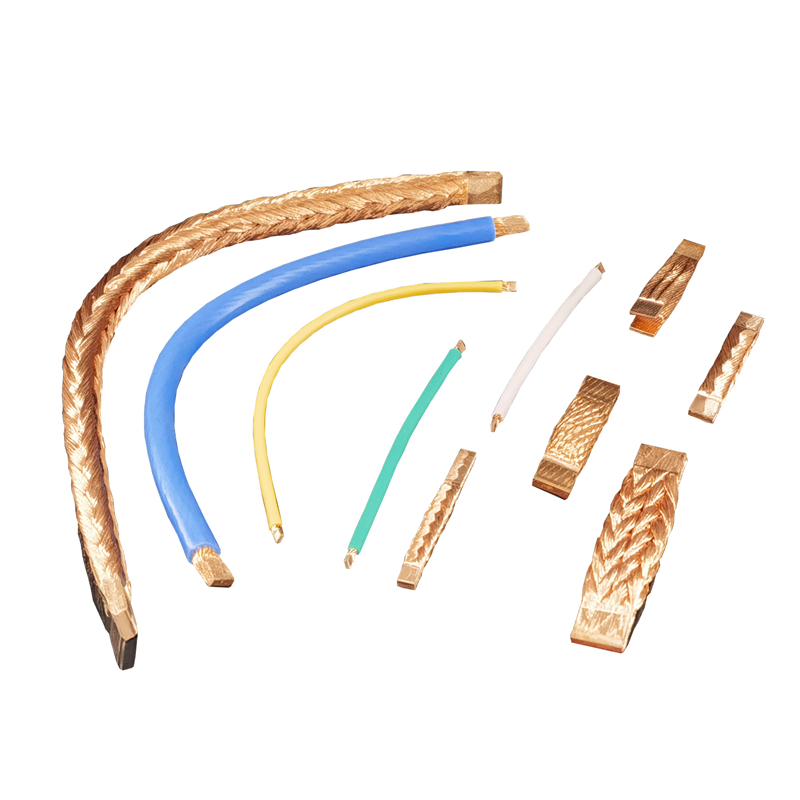

●Product Display:
